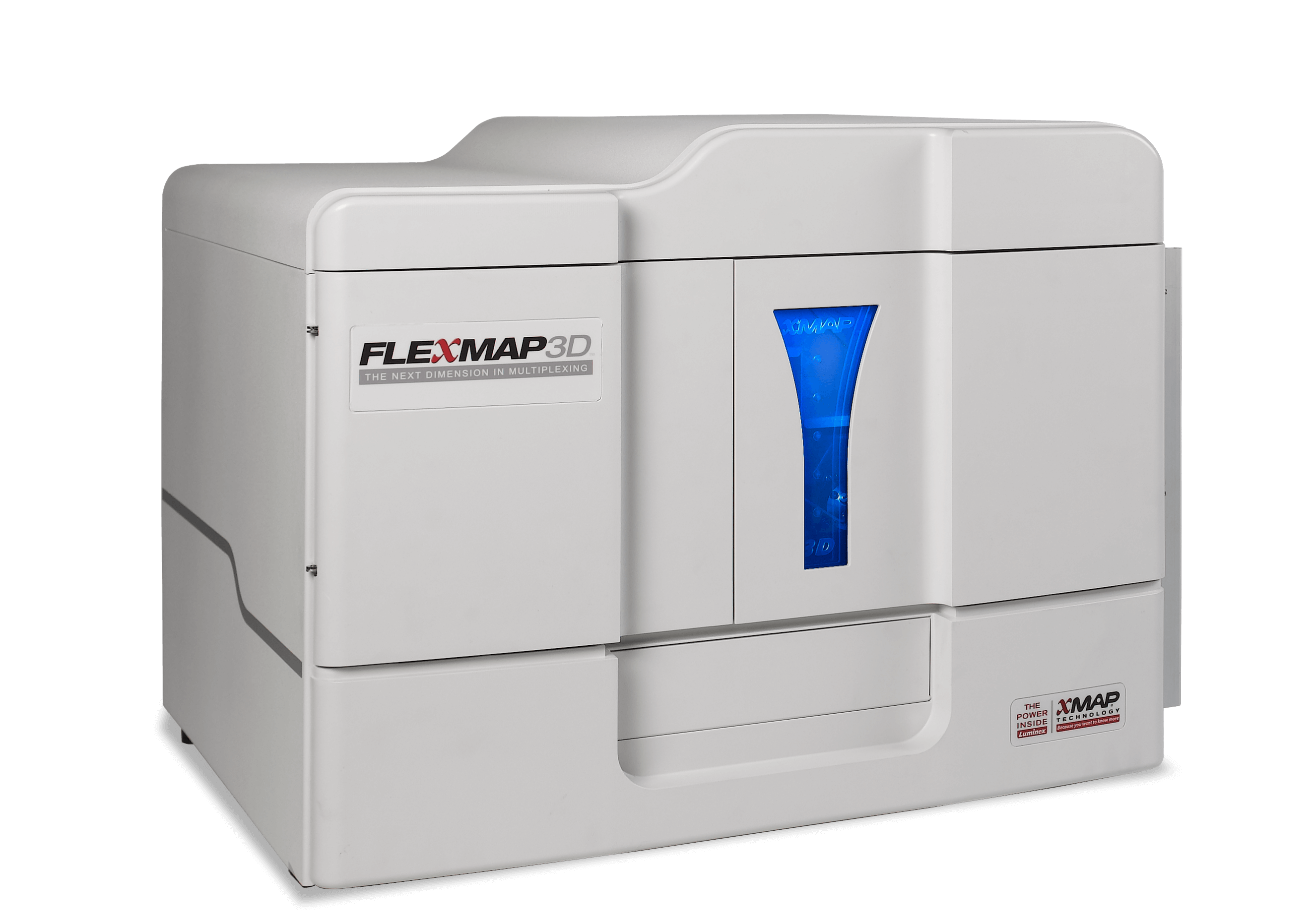

FLEXMAP 3D system · ABM 10945
FLEXMAP 3D is a multiplexing platform for bead-based laboratory analysis. Explore system documentation and support from ABM.
Read the product overviewProduct overview
FLEXMAP 3D is a multiplexing platform for bead-based laboratory analysis. Explore system documentation and support from ABM.
FLEXMAP 3D is a bead-based multiplex analysis platform for higher-throughput laboratory work. The system accepts 96- and 384-well plates, supports integration with front-end automation and provides automated startup, shutdown and maintenance routines. The manufacturer identifies compatible ProcartaPlex protein assays and QuantiGene Plex gene-expression assays.
- 96- and 384-well plate formats
- Multiplex protein and nucleic-acid applications
- Automated instrument routines
ABM product information · English translation
| FLEXMAP 3D specifications | |
|---|---|
| Performance | |
| Multiplexing capability | Up to 500 individual targets |
| Dynamic range | ≥ 4.5 logs |
| General characteristics | |
| Physical dimensions | 58.4 cm (W) × 63.5 cm (D) × 54.7 cm (H) |
| Weight | 91 kg |
| Plate heating system range | 35 – 60°C (95 – 131°F) |
| System initialisation time | 30 minutes |
| Fluidics system | |
| Fluid pressure | 8 – 13 psi |
| Sample introduction rate | 2 µL/second |
| Sample volume | 10 – 200 µl |
| Optics | |
| Classification laser emission | 638 nm |
| Reporter laser emission | 532 nm |
| Reporter detector | 565 nm – 585 nm |
