HiPo MPP-96 Microplate Photometer
Absorbance measurements in 96-well plates for ELISA and microbiological studies.
Read the product overviewProduct overview
Absorbance measurements in 96-well plates for ELISA and microbiological studies.

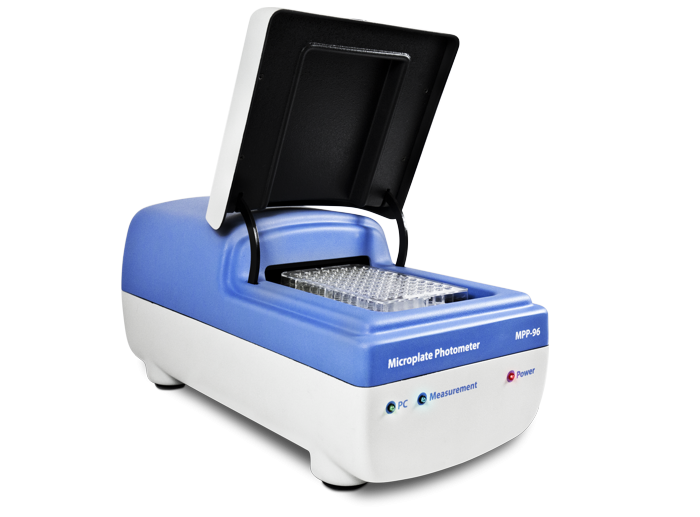

HiPo MPP-96 is an absorbance microplate photometer for ELISA and microbiological studies in 96-well plates. It is computer-controlled and supplied with QuantAssay software for assay setup, analysis, export and reporting. Endpoint, kinetic and multi-label measurements are supported, with filter-based wavelength selection.
- 96-well absorbance measurements
- QuantAssay software
- Endpoint and kinetic reading modes
ABM product information · English translation
| Accuracy (405, 450, 492, 620 nm) | |
| 0.000 – 2.000 OD | ≤(0.5% ± 0.010 OD), typical |
|---|---|
| 2.000 – 3.000 OD | ≤(1% ± 0.010 OD), typical |
| Precision/performance (405, 450, 492, 620 nm) | |
| 0.000 – 2.000 OD | ≤ (0.5 % ± 0.005 OD) |
| 2.000 – 3.000 OD | ≤ (1.0 % ± 0.005 OD) |
Specifications
| Detection principle | Absorbance |
|---|---|
| Light source | Self-calibrating LED |
| Photodetector | 8 silicon photodiodes |
| Plate type | 96-well plate |
| Reading speed | 5–8 seconds per wavelength |
| Measurement features | Endpoint, kinetic and multipoint measurement |
| Measurement channels | 8 |
| Reference channel | 1 |
| Measurement range | 0 – 4.3 OD |
| Resolution | 0.0001 OD |
| Wavelength range | 400 – 700 nm |
| Wavelength selection | Up to 8 filters in the carousel; standard filters: 405, 450, 492 and 620 nm |
| Shaking speed control range | 4 amplitudes, 4 speeds |
| Software | QuantAssay |
| PC system requirements: | Intel/AMD processor, 1 GB RAM, Windows Vista/7/8, USB |
| Weight | 4.6 kg |
| Dimensions (W × D × H) | 140 × 300 × 130 mm |
| Power supply | Input AC 100–240 V, 50/60 Hz; output DC 12 V |
