Biosan
MSH-300i Magnetic Stirrer with Hot Plate
A magnetic stirrer with a heated plate for laboratory mixing and temperature-controlled sample preparation.
Read the product overviewProduct overview
A magnetic stirrer with a heated plate for laboratory mixing and temperature-controlled sample preparation.
Intelli-Stirrer MSH-300i combines magnetic stirring with a heated plate and digital control of temperature and rotation speed. An external probe can control the temperature of the liquid directly. The metal enclosure, detachable sensor stand and over-temperature protection support routine laboratory mixing and solution preparation.

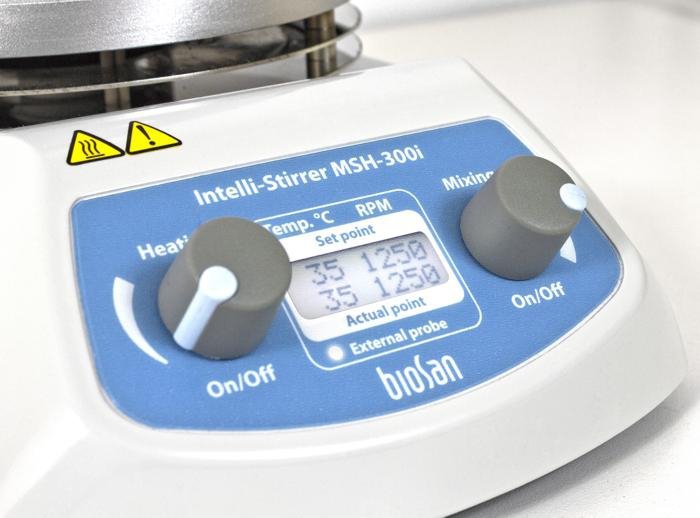

- Digital heating and stirring controls
- External temperature-probe control
- Over-temperature protection
Specifications
| Speed control range | 100–1250 rpm (10 rpm increments) |
|---|---|
| Maximum stirring volume (water) | 20 litres |
| Plate temperature control range | +30°C to +330°C (1°C increments) |
| Display | LCD |
| Plate temperature uniformity | ±3°C |
| Working plate heating time to 330°C | 11 minutes |
| Working plate dimensions | 160 mm |
| Working surface material | Aluminium |
| Magnetic stirring element length | 20–70 mm |
| Dimensions (W × D × H) | 190 × 270 × 100 mm |
| Weight | 3.2 kg |
| Nominal operating voltage | 230 V; 50/60 Hz or 120 V; 50/60 Hz |
| Power consumption (stirring) | 8.5 W |
| Power consumption (heating) | 550 W |

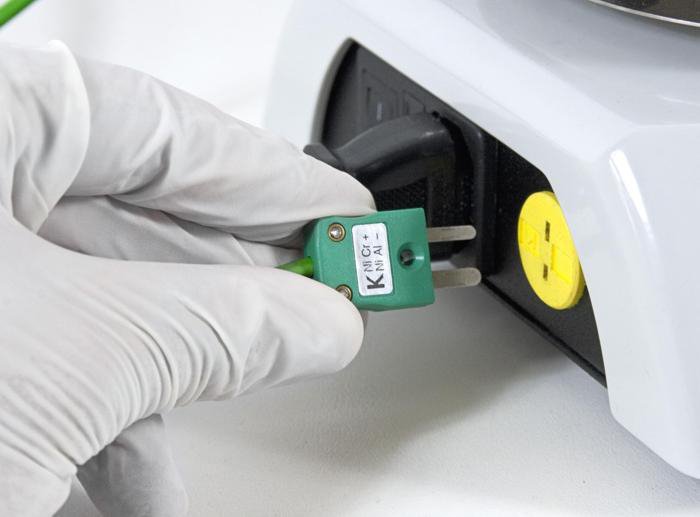

| Connection | Type K |
| Cable length | 1 m |
| Operating temperature range | –50°С - +250°С |
