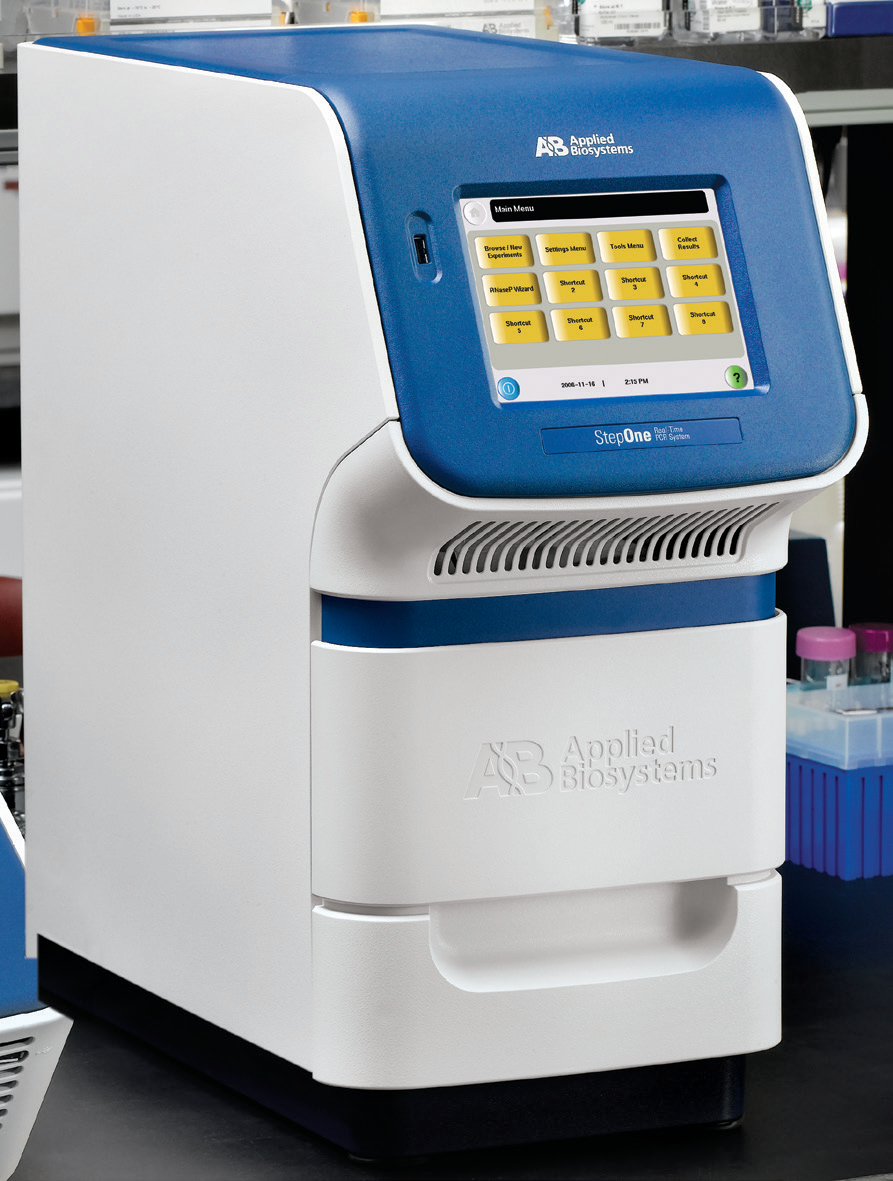

StepOne™ real-time PCR system
A 48-well real-time PCR system with integrated instrument control and data analysis software.
Read the product overviewProduct overview
A 48-well real-time PCR system with integrated instrument control and data analysis software.
StepOne is the 48-well, three-colour member of the original StepOne real-time PCR family. Its LED-based optical system measures fluorescence during amplification, while software supports experiment setup, analysis and quality review. The touchscreen and USB interface support flexible operation. The 96-well block and four-colour optics belong to StepOnePlus, not this base model.
- 48-well real-time PCR
- Three-colour optical detection
- Touchscreen and USB interface
Specifications
| Calibrated dye: | FAM™, JOE™, ROX™, SYBR® Green I, VIC® |
|---|---|
| Capacity: | 1 × 48-well plate, 48 × 0.1 mL tubes |
| Detection method: | Primer-probe detection, SYBR Green |
| Dimensions: | 24.6 cm / 9.7 in. (W) × 42.7 cm / 16.8 in. (D) × 51.2 cm / 20.2 in. (H) |
| Format: | 0.1 mL tubes, 48-well plate |
| High-throughput capability: | Multiplexing |
| Optics: | 3 emission filters, LED, photodiode |
| Passive reference dye: | Without ROX, ROX premixed, ROX in a separate tube |
| Block ramp rate: | 4.6°C/second |
| Product line: | StepOne™ |
| Product size: | 1 instrument |
| Reaction speed: | Fast, standard |
| Reaction volume range: | 10–30 µL (standard-curve experiments: 40 µL validated in standard mode) |
| Run time: | <2 hours per reaction (standard mode), <40 minutes per run (fast mode) |
| Sample ramp rate: | Fast mode: ±2.2°C/second; standard mode: ±1.6°C/second |
| Sensitivity: | 1 copy |
| Temperature accuracy: | 0.25°C (35 - 95°C) |
| Temperature range: | 4-100°C |
| Temperature uniformity: | 0.25°C (35 - 95°C) |
| Thermal cycling system: | Peltier system |
| Weight: | 23.6 kg (52 lbs.) |
