Biosan

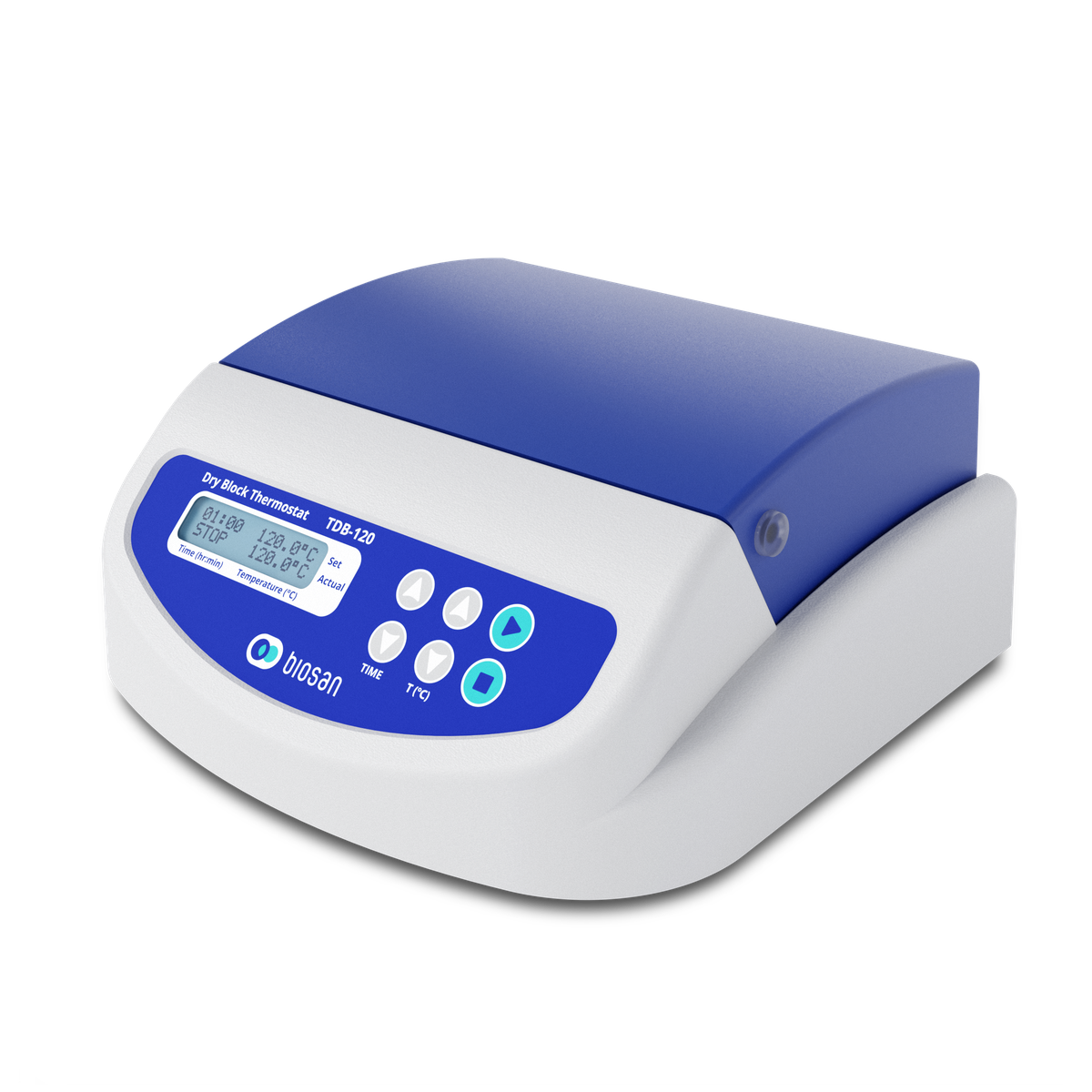

TDB-120 Dry Block Thermostat
Controlled heating of tube samples in an aluminium dry block.
Read the product overviewProduct overview
Controlled heating of tube samples in an aluminium dry block.

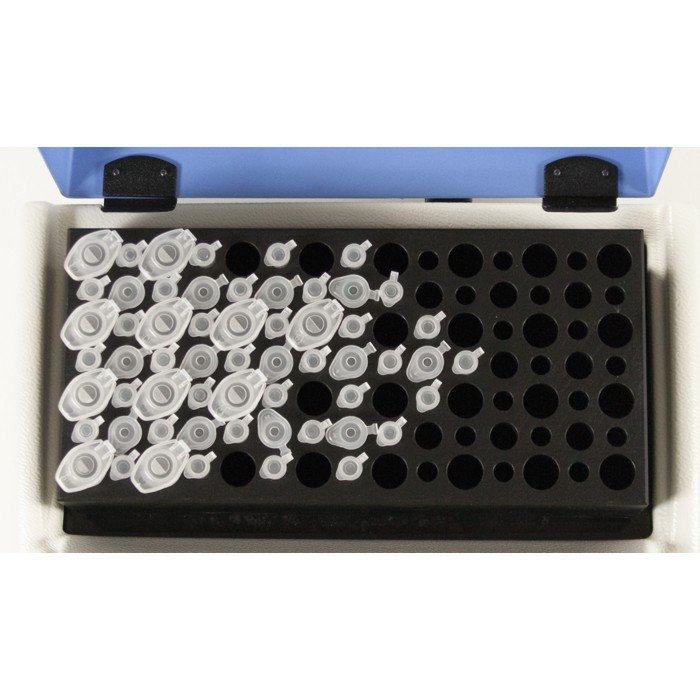

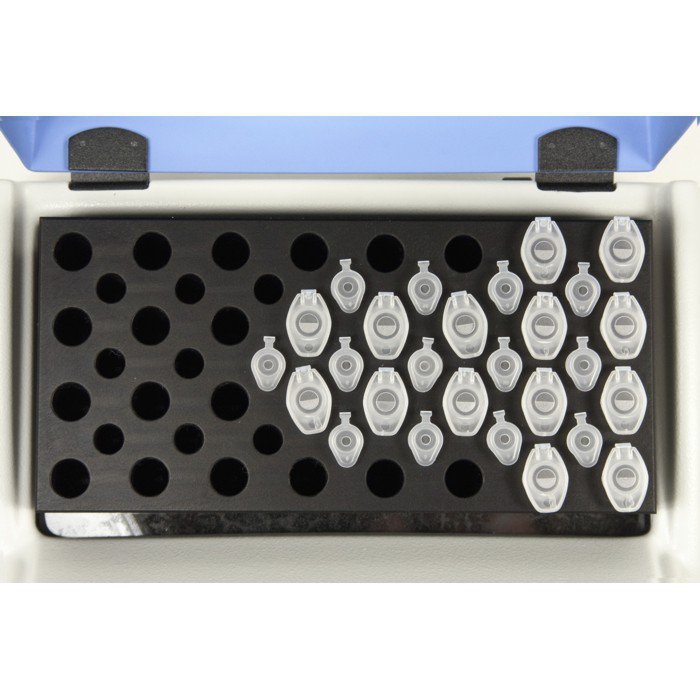

TDB-120 maintains the temperature of tube samples in a fixed aluminium block. Temperature and time are controlled by a microprocessor, with the display showing both set and actual values. The manufacturer offers different built-in block arrangements; these blocks are fixed in the unit and are not user-interchangeable.
- Dry-block temperature control
- Fixed block configurations
- Set and actual temperature display
Specifications
| Temperature range | +25°C ... +120°C |
|---|---|
| Temperature control range | 5°C above ambient to +120°C |
| Temperature stability at +37°C | ±0.1°C |
| Display | LCD, 2 × 16 characters |
| Digital time display | 1 minute–96 hours (1-minute increments) |
| Dimensions (W × D × H) | 230 × 210 × 110 mm |
| Weight | 2.8 kg |
| Nominal operating voltage | 230 V, 50/60 Hz or 120 V, 50/60 Hz |
| Power consumption (230 V) | 200 W (870 mA) |
