UVR-Mi UV Air Cleaner-Recirculator
Enclosed UV air recirculation for laboratory environments.
Read the product overviewProduct overview
Enclosed UV air recirculation for laboratory environments.

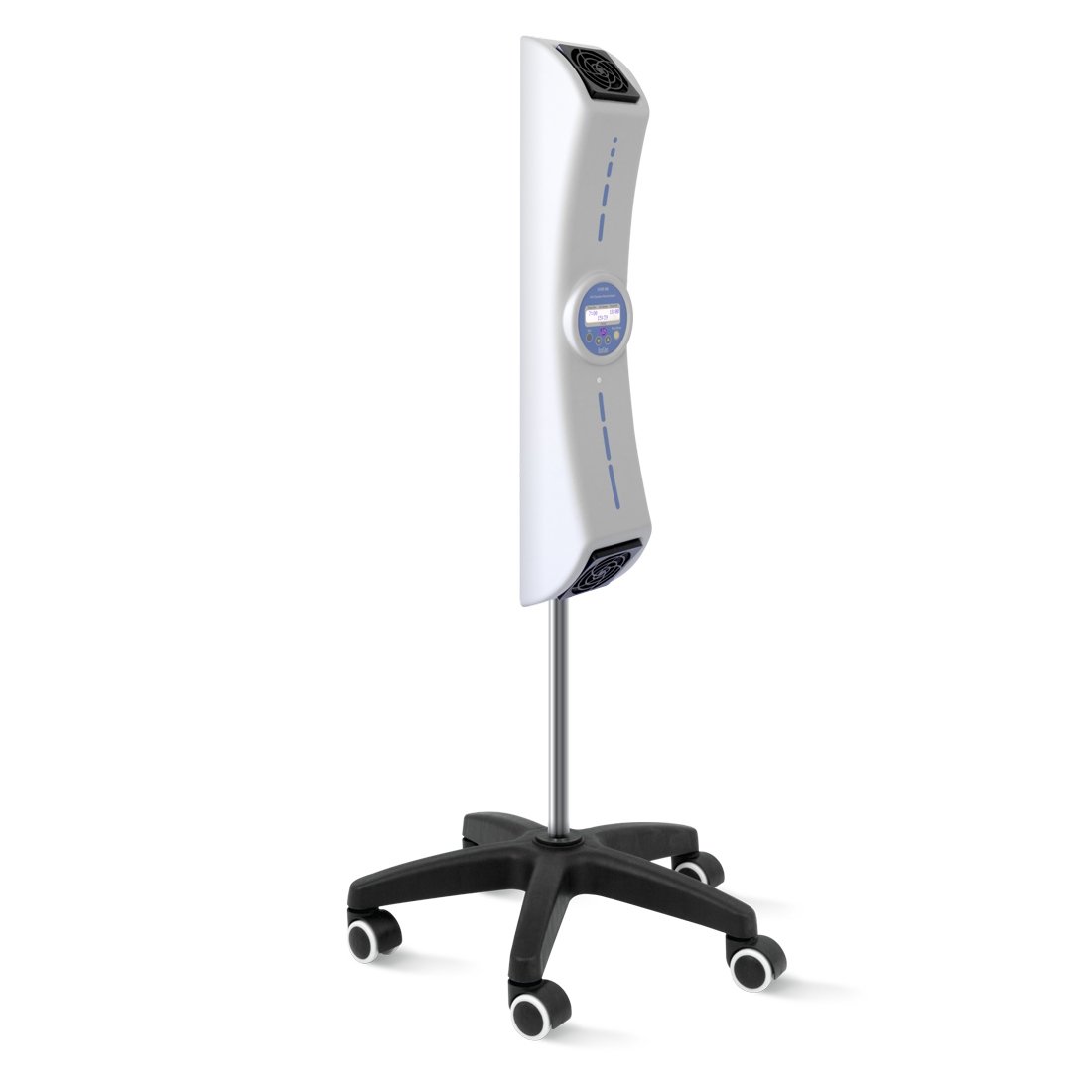

UVR-Mi circulates air through an enclosed chamber containing two germicidal UV lamps. A fan and dust filters move air through the chamber, while the control unit tracks lamp operating time. The manufacturer provides wall mounting as standard and a movable stand as an option; this is an air recirculator rather than a surface-treatment device.
- Enclosed UV air-treatment chamber
- Two UV lamps
- Lamp operating-time monitoring
Specifications
| UV radiation source | 2 × 25 W germicidal TUV25WG13 UV-C lamps |
|---|---|

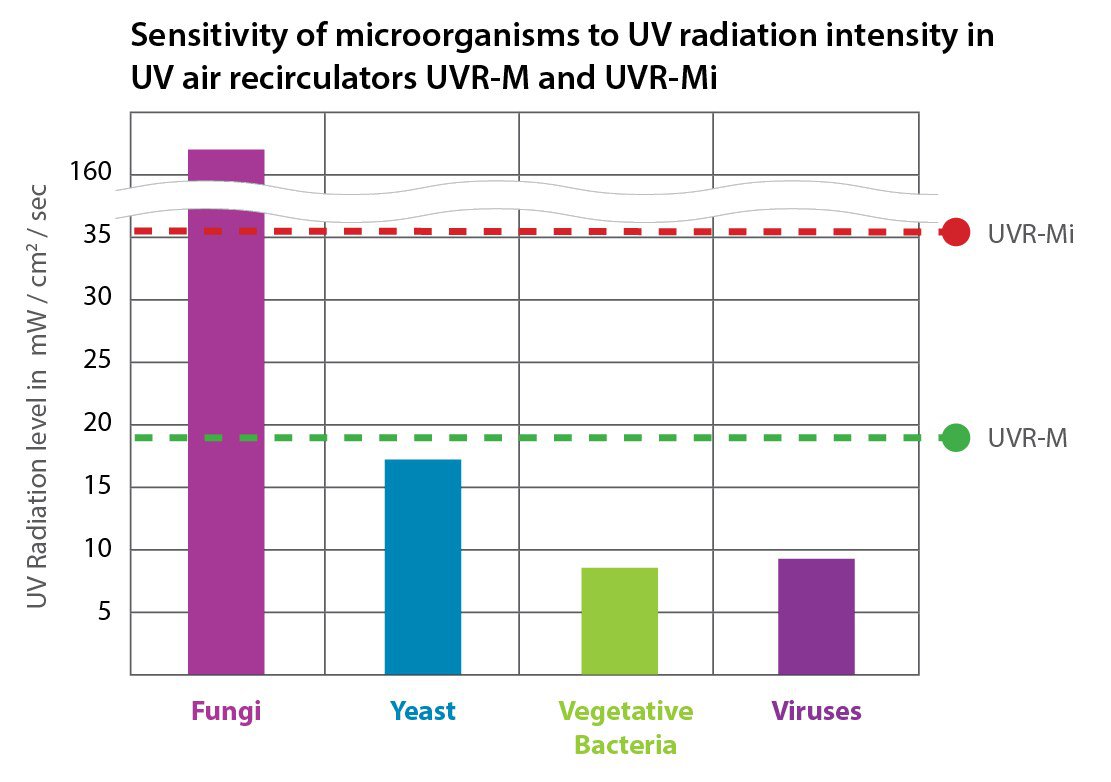

| UV radiation level | 36 mW/cm²/s |
| Airflow rate | 14 m³/hour |
| User protection against direct UV exposure | + |
| Display | LCD |
| UV lamp lifetime counter | + |
| Timer | 1 minute–24 hours / continuous |
| Automatic on/off | + |
| Lamp fault detection | + |
| Dimensions (W × D × H) | 110 × 135 × 660 mm |
| Weight | 3.4 kg |
| Nominal operating voltage | 230 V, 50 Hz |
| Power consumption (230 V / 120 V) | 110 W (0.5 A) |
