Biosan

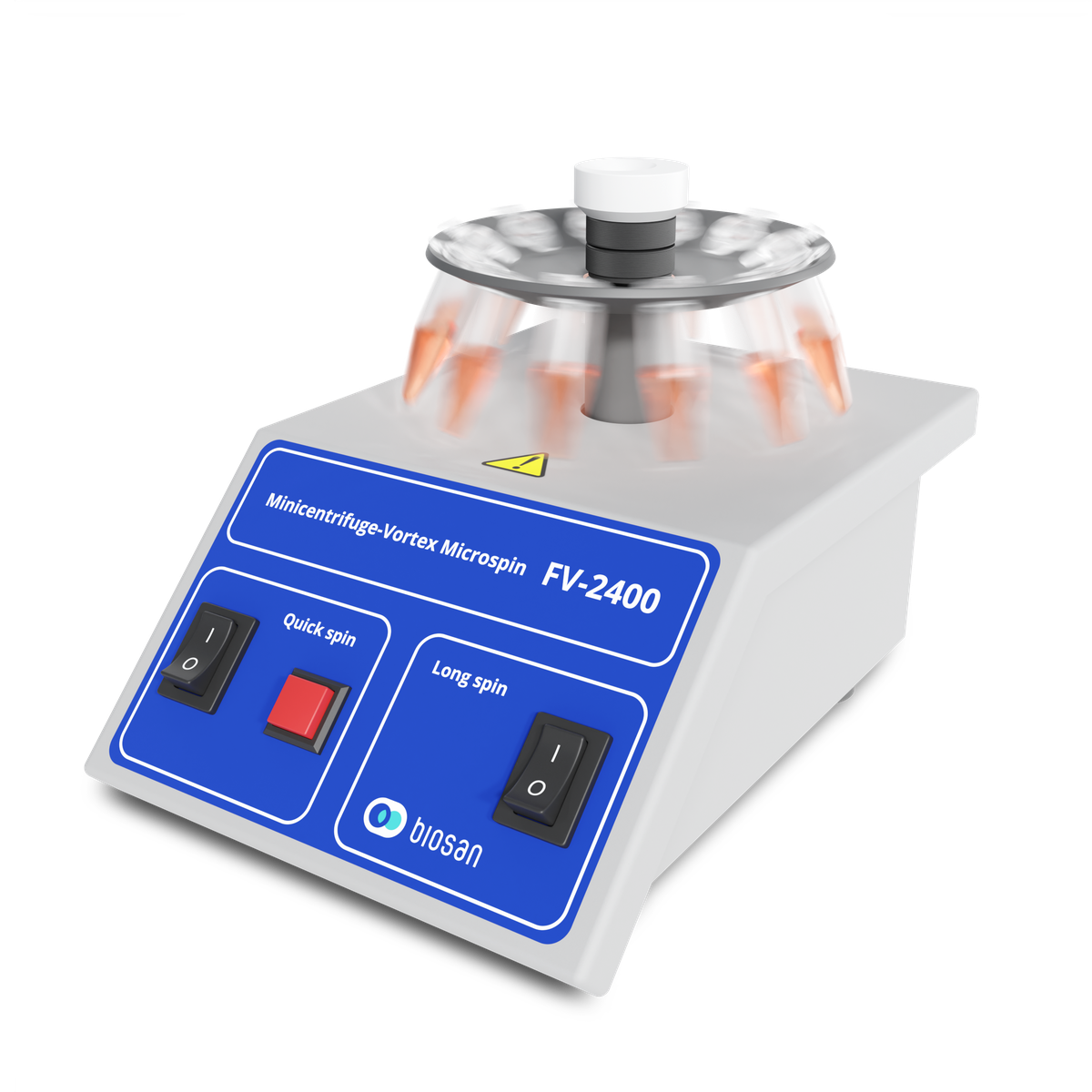

FV-2400 Microspin Minicentrifuge-Vortex
A compact instrument combining centrifugation and vortex mixing for microtube sample preparation.
Read the product overviewProduct overview
A compact instrument combining centrifugation and vortex mixing for microtube sample preparation.
FV-2400 combines centrifugation and vortex mixing modules on one compact instrument. It uses an open rotor arrangement and supports continuous and impulse operation. The manufacturer specifies different rotation speeds for 50 Hz and 60 Hz electrical supplies, so the applicable specification must be checked for the selected supply version.
- Combined spin and vortex functions
- Continuous and impulse modes
- Supply-frequency-dependent speed
Specifications
| Continuous and pulse operating modes | + |
|---|---|
| Dimensions (W × D × H) | 120 × 170 × 120 mm |
| Weight | 1.4 kg |
| Nominal operating voltage | 120 or 230 V, 50 Hz |
| Rotation speed (fixed) | 2800 rpm |
| Maximum RCF | 500 x g |
| Power consumption (230 V / 120 V) | 30 W (0.13 A) / 30 W (0.27 A) |
| Nominal operating voltage | 120 or 230 V, 60 Hz |
| Rotation speed (fixed) | 3500 rpm |
| Maximum RCF | 700 x g |
| Power consumption (230 V / 120 V) | 25 W (0.1 A) / 30 W (0.27 A) |
