CVP-2 Centrifuge-Vortex for PCR Plates
Combine plate mixing and spin-down steps during PCR sample preparation.
Read the product overviewProduct overview
Combine plate mixing and spin-down steps during PCR sample preparation.

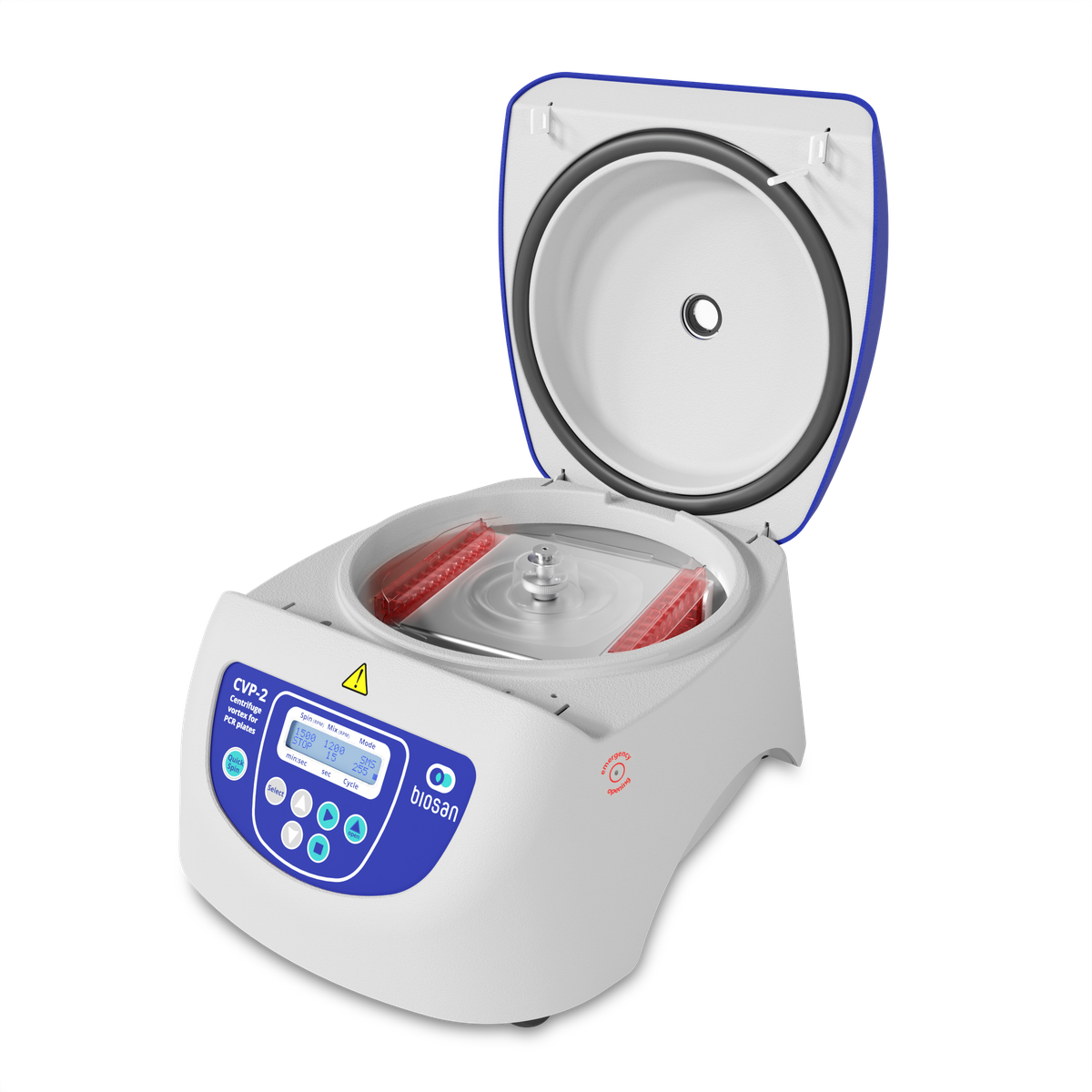

CVP-2 is a combined centrifuge and vortex mixer for PCR plates. It can automate repeated spin–mix–spin cycles for two plates, or run the centrifugation and mixing functions separately. Plate compatibility depends on format: semi-skirted, non-skirted and 384-well plates require the appropriate manufacturer-listed adapters.
- Two-plate processing
- Programmable spin–mix–spin cycles
- Format-specific plate adapters
Specifications
| Speed adjustment range | 300–1500 rpm |
|---|---|
| Minimum RCF at 1500 rpm | 175 x g |
| Vortex adjustment range | 300–1200 rpm |
| Display | LCD, 2 × 16 characters |
| Number of cycles | 1-999 |
| Chamber diameter | 210 mm |
| Dimensions (W × D × H) | 285 × 350 × 190 mm |
| Weight | 6.15 kg |
| Electrical supply | 12 V, 1.5 A / 18 W |
| External power source | Input AC 100–240 V, 50/60 Hz; output DC 12 V |
