Biosan
V-1 plus Personal Vortex
Compact vortex mixing for tubes, from gentle agitation to resuspension.
Read the product overviewProduct overview
Compact vortex mixing for tubes, from gentle agitation to resuspension.
V-1 plus is a compact vortex mixer for mixing and resuspending liquids in tubes. Its eccentric mixing mechanism supports continuous operation or touch activation by pressing a tube against the cap. Variable speed allows mixing intensity to be adjusted for the application.

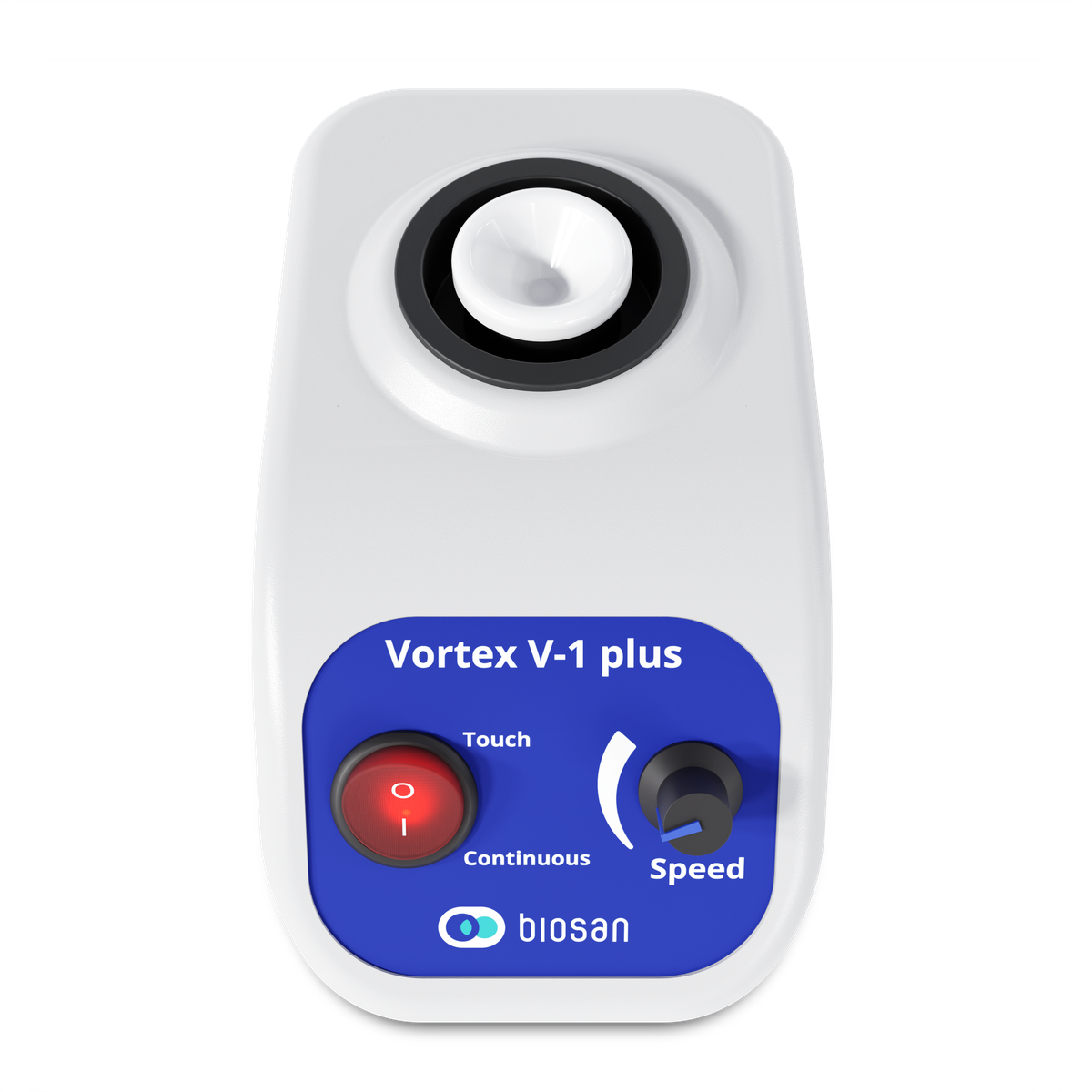

- Continuous or touch activation
- Variable mixing speed
- Compact single-tube format
Specifications
| Eccentric mixing principle | + |
|---|---|
| Speed control range | 750-3000 RPM |
| Tube mixing mode | from 1.5 to 50 ml |
| Maximum volume of material to be mixed | 30 ml |
| Orbit | 4 mm |
| Dimensions (W × D × H) | 90x150x80 mm |
| Weight | 0.8 kg |
| Power consumption specifications | 12 V, 320 mA / 3.8 W |
| External power supply | Input AC 100–240 V, 50/60 Hz; output DC 12 V |
