Biosan
LMC-4200R, laboratory refrigerated centrifuge
A refrigerated benchtop centrifuge for temperature-controlled processing of laboratory samples.
Read the product overviewProduct overview
A refrigerated benchtop centrifuge for temperature-controlled processing of laboratory samples.

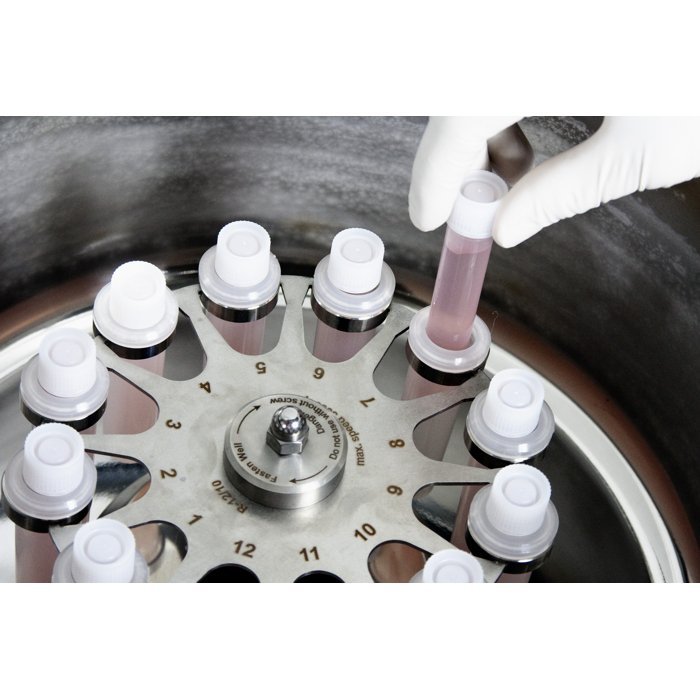

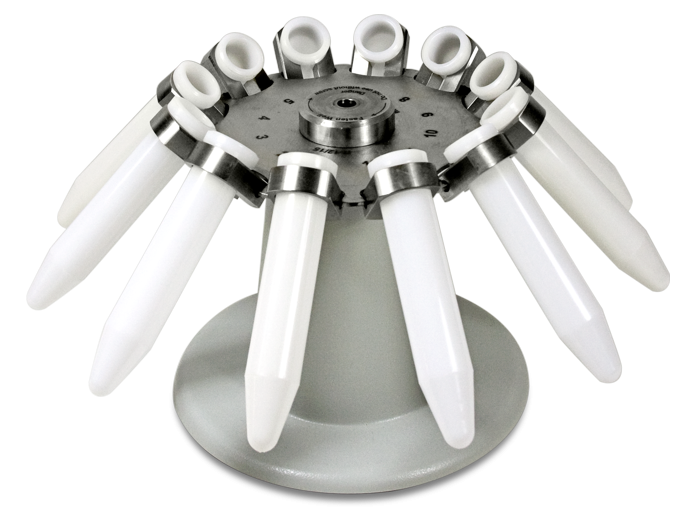

LMC-4200R combines benchtop centrifugation with temperature control. It is designed for compatible microtest plates, gel cards and tubes from 10 to 50 mL. Speed, temperature and time are displayed together, while rotor choices allow the instrument to be configured for the sample format.
- Refrigerated centrifugation
- Tube, plate and gel-card options
- Speed, temperature and time control
Specifications
| Temperature range control | –10°C ... +25°C |
|---|---|
| Stable temperature maintenance range | 25°C below ambient to +25°C |
| Temperature display resolution | 1°C |
| Speed adjustment range for centrifuge tubes | 100–4200 rpm (3160 × g) |
| Speed adjustment range for microplates | 100–2000 rpm (560 × g) |
| Speed display resolution | 100 rpm |
| Rotor imbalance control: automatic stop and IMBALANCE warning | + |
| Deceleration time, maximum | 30 seconds |
| Display | LCD, 2 lines |
| Digital time setting | 1–90 minutes (1-minute increments) |
| Chamber diameter | 335 mm |
| Dimensions | 635 × 580 × 335 mm |
| Weight | 56 kg |
| Nominal operating voltage | 230 V, 50 Hz |
| Power consumption (230 V) | 990 W (4.3 A) |
